FP06P 3/2 Direct Acting (Slimline)FP06P-SI-04-32-NU-V-58A-135

This product ships globally

SKU : FP0-591-FP-001

In Stock

(0 Reviews)

FP06P 3/2 Direct Acting (Slimline)

Model Code : FP06P-SI-04-32-NU-V-58A-135

FP06P-SI-04-32-NU-V-58A-135 FP06P-SI-04-32-NU-V-58A-ML-135

[{"id":24324,"product_id":591,"price":0,"visibility":true,"inventory_status":true,"inventory_amount":0,"is_taxable":1,"sku":"FP0-591-FP-001","weight":"","catid":70,"image":{"id":1122,"src":"\/images\/easystore\/product-591\/1b.png","name":"1b.png","type":"image","is_featured":1,"alt_text":"FP06P  3\/2 Direct Acting (Slimline)FP06P-SI-04-32-NU-V-58A-135"},"combination":"FP06P-SI-04-32-NU-V-58A-135","is_tracking_inventory":0,"tax_rate":0,"price_with_currency":"$0.00","price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"discounted_price":0,"discounted_price_with_currency":"$0.00","discounted_price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"variant_option_map":{"Model Code":"FP06P-SI-04-32-NU-V-58A-135"}},{"id":24325,"product_id":591,"price":0,"visibility":true,"inventory_status":true,"inventory_amount":0,"is_taxable":1,"sku":"FP0-591-FP-002","weight":"","catid":70,"image":{"id":1122,"src":"\/images\/easystore\/product-591\/1b.png","name":"1b.png","type":"image","is_featured":1,"alt_text":"1b.png"},"combination":"FP06P-SI-04-32-NU-V-58A-ML-135","is_tracking_inventory":0,"tax_rate":0,"price_with_currency":"$0.00","price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"discounted_price":0,"discounted_price_with_currency":"$0.00","discounted_price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"variant_option_map":{"Model Code":"FP06P-SI-04-32-NU-V-58A-ML-135"}}]

Quantity

Social share:

You have 30 days to ask for a refund. All things on sale are final sale.

About This Item
Reviews

Order Details

¼" NPT Ports, 3 Way 2 Position, Direct Acting, Normally Universal, Auto Reset.

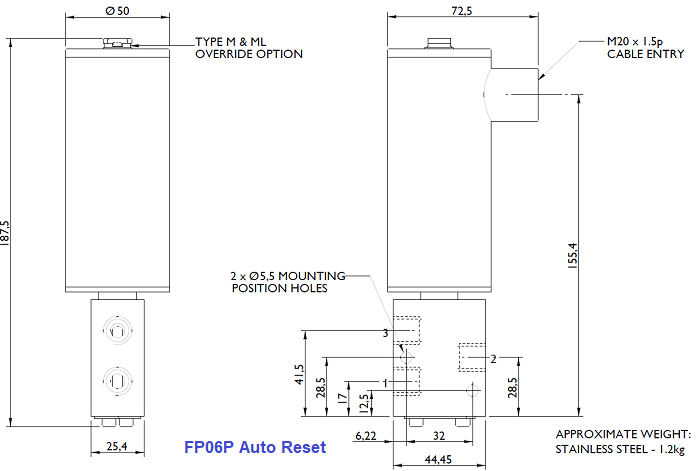

¼" NPT Ports, 3 Way 2 Position, Direct Acting, Normally Universal, Manual Reset.

Solenoid Model: FP06P 3/2 Direct Acting (Slimline)
Selection Chart	Code	Feature
Max Working Pressure:	S1	10 bar

Connections	04	¼" Body Ported (Stainless Steel)

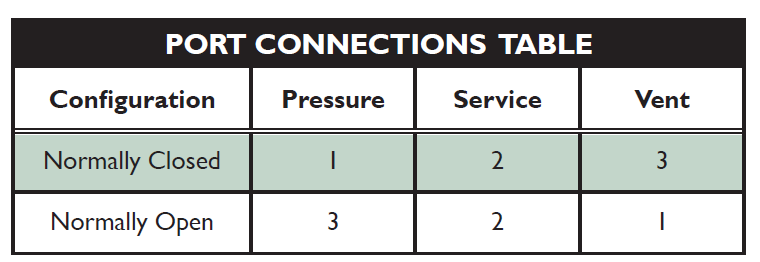

Valve Configuration	32	(3-way, 2-position)

Valve Configuration1	NU	Normally Universal - for details click here

O-ring Material	S	Nitrile (-20ºC to +130ºC)
	SA	Nitrile (Low Temperature) (-25ºC to +130ºC)
	V	Viton (standard) (-20ºC to +90ºC)
	AL	Flourosilicone (-55ºC to +90ºC)

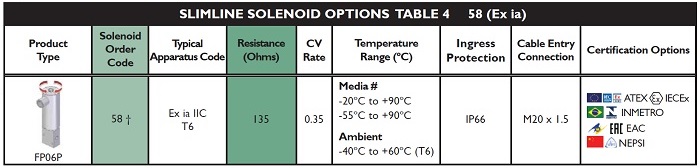

Solenoid	58	see Figure here

Solenoid Approval	A	ATEX/IECEx Dual Certified/Labelled
	G	EAC/IECEx Dual Certified/Labelled
	I	INMETRO/IECEx Dual Certified/Labelled
	N	NEPSI/IECEx Dual Certified/Labelled
	U	CSA (US)/ATEX Dual Certified/Labelled
	K	KTL/IECEx Dual Certified/Labelled

Options	M	Electrical to switch or temporary manual override
Options	ML	Electrical and manual required to switch or temporary manual override

Resistance	135	see Figure here

cable entry		M20 x 1.5 Cable Entry (no letter)
cable entry	K85	½" NPT Cable Entry

Option		NPT Ports (no letter)
Option	K6	BSPP Ports
