FP10P Direct Acting (Auto & Manual-Reset)FP10P-SI-04-32-NU-V-74A-24D-44-XX

This product ships globally

SKU : FP1-593-FP-001

In Stock

(0 Reviews)

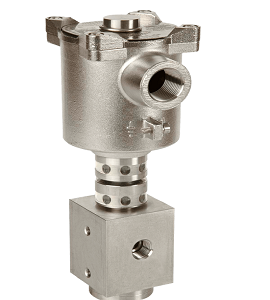

FP10P Direct Acting (Auto & Manual-Reset)

Model Code : FP10P-SI-04-32-NU-V-74A-24D-44-XX

FP10P-SI-04-32-NU-V-74A-24D-44-XX FP10P-SI-04-32-NU-V-74A-24D-68-XX FP10P-SI-04-32-NU-V-77A9-24D-35-XX FP10P-SI-04-32-NU-V-77A9-24D-57-XX FP10P-SI-04-32-NU-V-74A9-24D-ML-36-XX FP10P-SI-02-32-NU-V-77A9-24D-ML-30-XX

[{"id":24328,"product_id":593,"price":0,"visibility":true,"inventory_status":true,"inventory_amount":0,"is_taxable":1,"sku":"FP1-593-FP-001","weight":"","catid":70,"image":{"id":1173,"src":"\/images\/easystore\/product-593\/auto_reset.png","name":"auto_reset.png","type":"image","is_featured":0,"alt_text":"FP10P Direct Acting  (Auto & Manual-Reset)FP10P-SI-04-32-NU-V-74A-24D-44-XX"},"combination":"FP10P-SI-04-32-NU-V-74A-24D-44-XX","is_tracking_inventory":0,"tax_rate":0,"price_with_currency":"$0.00","price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"discounted_price":0,"discounted_price_with_currency":"$0.00","discounted_price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"variant_option_map":{"Model Code":"FP10P-SI-04-32-NU-V-74A-24D-44-XX"}},{"id":24329,"product_id":593,"price":0,"visibility":true,"inventory_status":true,"inventory_amount":0,"is_taxable":1,"sku":"FP1-593-FP-002","weight":"","catid":70,"image":{"id":1173,"src":"\/images\/easystore\/product-593\/auto_reset.png","name":"auto_reset.png","type":"image","is_featured":0,"alt_text":"auto_reset.png"},"combination":"FP10P-SI-04-32-NU-V-74A-24D-68-XX","is_tracking_inventory":0,"tax_rate":0,"price_with_currency":"$0.00","price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"discounted_price":0,"discounted_price_with_currency":"$0.00","discounted_price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"variant_option_map":{"Model Code":"FP10P-SI-04-32-NU-V-74A-24D-68-XX"}},{"id":24330,"product_id":593,"price":0,"visibility":true,"inventory_status":true,"inventory_amount":0,"is_taxable":1,"sku":"FP1-593-FP-003","weight":"","catid":70,"image":{"id":1173,"src":"\/images\/easystore\/product-593\/auto_reset.png","name":"auto_reset.png","type":"image","is_featured":0,"alt_text":"auto_reset.png"},"combination":"FP10P-SI-04-32-NU-V-77A9-24D-35-XX","is_tracking_inventory":0,"tax_rate":0,"price_with_currency":"$0.00","price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"discounted_price":0,"discounted_price_with_currency":"$0.00","discounted_price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"variant_option_map":{"Model Code":"FP10P-SI-04-32-NU-V-77A9-24D-35-XX"}},{"id":24331,"product_id":593,"price":0,"visibility":true,"inventory_status":true,"inventory_amount":0,"is_taxable":1,"sku":"FP1-593-FP-004","weight":"","catid":70,"image":{"id":1173,"src":"\/images\/easystore\/product-593\/auto_reset.png","name":"auto_reset.png","type":"image","is_featured":0,"alt_text":"auto_reset.png"},"combination":"FP10P-SI-04-32-NU-V-77A9-24D-57-XX","is_tracking_inventory":0,"tax_rate":0,"price_with_currency":"$0.00","price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"discounted_price":0,"discounted_price_with_currency":"$0.00","discounted_price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"variant_option_map":{"Model Code":"FP10P-SI-04-32-NU-V-77A9-24D-57-XX"}},{"id":24332,"product_id":593,"price":0,"visibility":true,"inventory_status":true,"inventory_amount":0,"is_taxable":1,"sku":"FP1-593-FP-005","weight":"","catid":70,"image":{"id":1174,"src":"\/images\/easystore\/product-593\/manual_reset.png","name":"manual_reset.png","type":"image","is_featured":0,"alt_text":"manual_reset.png"},"combination":"FP10P-SI-04-32-NU-V-74A9-24D-ML-36-XX","is_tracking_inventory":0,"tax_rate":0,"price_with_currency":"$0.00","price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"discounted_price":0,"discounted_price_with_currency":"$0.00","discounted_price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"variant_option_map":{"Model Code":"FP10P-SI-04-32-NU-V-74A9-24D-ML-36-XX"}},{"id":24333,"product_id":593,"price":0,"visibility":true,"inventory_status":true,"inventory_amount":0,"is_taxable":1,"sku":"FP1-593-FP-006","weight":"","catid":70,"image":{"id":1174,"src":"\/images\/easystore\/product-593\/manual_reset.png","name":"manual_reset.png","type":"image","is_featured":0,"alt_text":"manual_reset.png"},"combination":"FP10P-SI-02-32-NU-V-77A9-24D-ML-30-XX","is_tracking_inventory":0,"tax_rate":0,"price_with_currency":"$0.00","price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"discounted_price":0,"discounted_price_with_currency":"$0.00","discounted_price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"variant_option_map":{"Model Code":"FP10P-SI-02-32-NU-V-77A9-24D-ML-30-XX"}}]

Quantity

Social share:

Social share:

You have 30 days to ask for a refund. All things on sale are final sale.

About This Item
Reviews

Order Details

¼" NPT Ports, 3 way 2 position, direct acting, Normally Universal, 24Vdc, Auto Reset.
¼" NPT Ports, 3 way 2 position, direct acting, Normally Universal, 24Vdc, Manual Reset.

Solenoid Model: FP10P Direct Acting (Auto & Manual-Reset)
Selection Chart	Code	Feature
Operator	S1	10 bar
	S2	16 bar
	S3	35 bar

Connections	04	¼" NPT body ported
	06	3⁄8" NPT body ported
	08	½" NPT body ported

Valve Confi guration	32	(3-way, 2-position)

Valve Confi guration1	NU	Normally Universal

O-ring Material	S	Nitrile (-20ºC to +130ºC)
	V	Viton (Standard) (-20ºC to +180ºC)
	AG	Silicone (-60ºC to +180ºC)
	AL	Fluorosilicone (-60ºC to +180ºC)

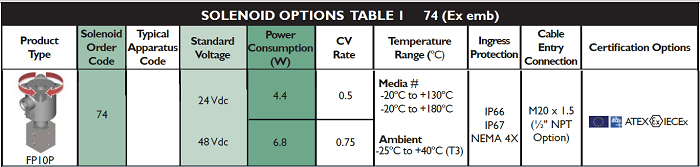

Solenoid	74	for more details see figure here
Solenoid	77	for more details see figure here

EX Feature	A	ATEX/IECEx Dual Certifi ed/Labelled
	G	GOST
	I	INMETRO
	N	NEPSI*
	U	CSA (US) ATEX Dual Certified/Labelled

T-Rating & Gas Group	3	T4 IIC 77 (Ex d)
	6	T5 IIC 77 (Ex d)
	9	T6 IIC 77 (Ex d)

Voltage	24D	see Figure 74 and 77
	48D
	110D
	110A
	240A

Options	M	Electrical to switch or temporary manual override
	ML	Electrical and manual required to latch or temporary manual override (3.0 Watts Ex d Only)
	MLT	Electrical and manual required to latch - tamperproof
	LE	Latched Energised (NO/NC Only) (6.5 Watts Ex d Only)

Power (watt)	44	see Figure here (4.4 & 6.8 Watts)
	68	see Figure here (4.4 & 6.8 Watts)
	35	see Figure here (3.5 & 5.7 Watts)
	57	see Figure here (3.5 & 5.7 Watts)

Option	K6	BSPP Ports

conduit entry	K85	½ " NPT conduit entry

Revision Number	XX	Optional

For green block sections, please refer to the same colour section on pages 11, 12 or 13.
* For China, please note that the solenoid operator is Type 87.
** Special conditions for safe use - The supply circuit shall be fi tted with a fuse capable of meeting a 1500Amp short circuit current.

For further information read the datasheet here

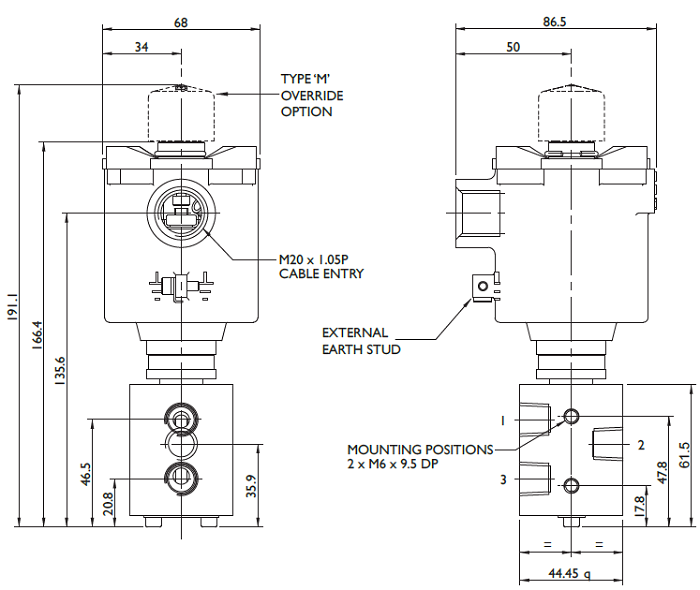

For dimension Click here

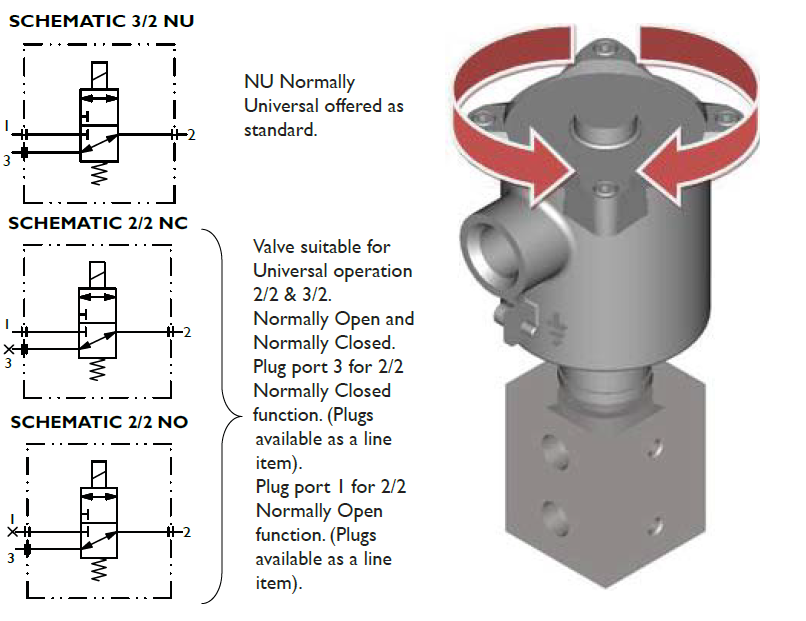

For diagram click here
Solenoid Valves - SIL Certificate here
