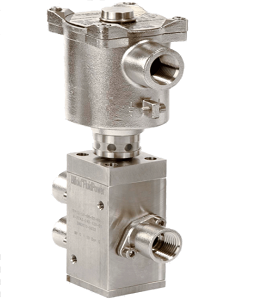

FP12P 3/2 Direct Acting (Auto & manual-Reset)

Model Code : FP12P-S1-08-32-NU-V-77A-24D-120

FP12P-S1-08-32-NU-V-77A-24D-120 FP12P-S1-08-32-NU-V-77A-24D-ML-65

[{"id":24326,"product_id":594,"price":0,"visibility":true,"inventory_status":true,"inventory_amount":0,"is_taxable":1,"sku":"FP1-594-FP-001","weight":"","catid":70,"image":{"id":1169,"src":"\/images\/easystore\/product-594\/auto_reset.png","name":"auto_reset.png","type":"image","is_featured":0,"alt_text":"FP12P  3\/2 Direct Acting (Auto & manual-Reset)FP12P-S1-08-32-NU-V-77A-24D-120"},"combination":"FP12P-S1-08-32-NU-V-77A-24D-120","is_tracking_inventory":0,"tax_rate":0,"price_with_currency":"$0.00","price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"discounted_price":0,"discounted_price_with_currency":"$0.00","discounted_price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"variant_option_map":{"Model Code":"FP12P-S1-08-32-NU-V-77A-24D-120"}},{"id":24327,"product_id":594,"price":0,"visibility":true,"inventory_status":true,"inventory_amount":0,"is_taxable":1,"sku":"FP1-594-FP-002","weight":"","catid":70,"image":{"id":1170,"src":"\/images\/easystore\/product-594\/manual_reset.png","name":"manual_reset.png","type":"image","is_featured":0,"alt_text":"manual_reset.png"},"combination":"FP12P-S1-08-32-NU-V-77A-24D-ML-65","is_tracking_inventory":0,"tax_rate":0,"price_with_currency":"$0.00","price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"discounted_price":0,"discounted_price_with_currency":"$0.00","discounted_price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"variant_option_map":{"Model Code":"FP12P-S1-08-32-NU-V-77A-24D-ML-65"}}]

Quantity

Social share:

You have 30 days to ask for a refund. All things on sale are final sale.

About This Item
Reviews

Order Details

½" NPT Ports, 3 Way 2 Position, Direct Acting, Normally Universal, 24Vdc, Auto Reset.
½" NPT Ports, 3 Way 2 Position, Direct Acting, Normally Universal, 24Vdc, Manual Reset.

Solenoid Model: FP12P 3/2 Direct Acting (Auto & manual-Reset)
Selection Chart	Code	Feature
Operator	S1	10 bar

Connections	08	½" NPT body ported

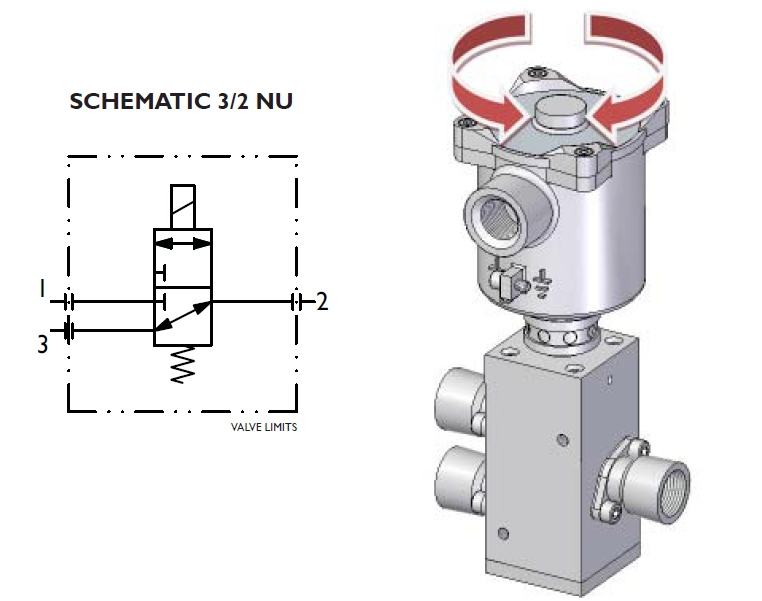

Valve Confi guration	32	(3-way, 2-position)

Valve Confi guration1	NU	Normally Universal
	NO	Normally Open
	NC	Normally Closed

O-ring Material	S	Nitrile (-20ºC to +130ºC)
	V	Viton (Standard) (-20ºC to +180ºC)
	AG	Silicone (-60ºC to +180ºC)
	AL	Fluorosilicone (-60ºC to +180ºC)

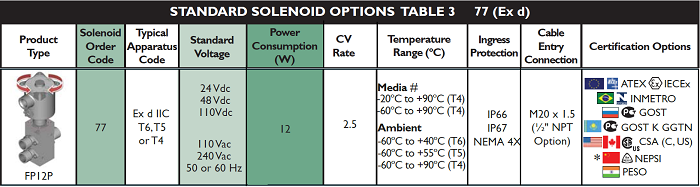

Solenoid	77	Reference to Figure here

Solenoid Approval	A	ATEX/IECEx Dual Certifi ed/Labelled
	G	GOST
	I	INMETRO
	N	NEPSI*
	U	CSA (US) ATEX Dual Certified/Labelled

T-Rating & Gas Group	3	T4 IIC 77 (Ex d)
	6	T5 IIC 77 (Ex d)
	9	T6 IIC 77 (Ex d)

Voltage	24D	for more details see Figure here
	48D
	110D
	110A
	240A

Options	M	Electrical to switch or temporary manual override
	ML	Electrical and manual required to latch or temporary manual override (3.0 Watts Ex d Only)
	MLT	Electrical and manual required to latch - tamperproof

Power (watt)	120	see Figure here (12, 6,5 Watts)
Power (watt)	65	see Figure here (12, 6,5 Watts)

Option	K6	BSPP Ports

Option 1	K85	½ " NPT conduit entry

Revision Number	XX	Optional
