FP15 - DPSSI,SS2,SS3 Dual Redundant (indirect acting)

Model Code : FP15/DPSS1/04/32/S/74AT4-24D/36

FP15/DPSS1/04/32/S/74AT4-24D/36 FP15/DPSS2/04/32/S/77A-24D/30 FP15/DPSS3/04/32/S/78A-155 FP15/DPSS1/04/32/S/74AT4-24D/M/36 FP15/DPSS2/04/32/S/77A-24D/M/30 FP15/DPSS3/04/32/S/78A-155/M

[{"id":24457,"product_id":616,"price":0,"visibility":true,"inventory_status":true,"inventory_amount":0,"is_taxable":1,"sku":"FP1-616-FP-001","weight":"","catid":74,"image":{"id":1150,"src":"\/images\/easystore\/product-616\/dpss1.png","name":"dpss1.png","type":"image","is_featured":1,"alt_text":"FP15 - DPSSI,SS2,SS3 Dual Redundant (indirect acting)FP15\/DPSS1\/04\/32\/S\/74AT4-24D\/36"},"combination":"FP15\/DPSS1\/04\/32\/S\/74AT4-24D\/36","is_tracking_inventory":0,"tax_rate":0,"price_with_currency":"$0.00","price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"discounted_price":0,"discounted_price_with_currency":"$0.00","discounted_price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"variant_option_map":{"Model Code":"FP15\/DPSS1\/04\/32\/S\/74AT4-24D\/36"}},{"id":24458,"product_id":616,"price":0,"visibility":true,"inventory_status":true,"inventory_amount":0,"is_taxable":1,"sku":"FP1-616-FP-002","weight":"","catid":74,"image":{"id":1150,"src":"\/images\/easystore\/product-616\/dpss1.png","name":"dpss1.png","type":"image","is_featured":1,"alt_text":"dpss1.png"},"combination":"FP15\/DPSS2\/04\/32\/S\/77A-24D\/30","is_tracking_inventory":0,"tax_rate":0,"price_with_currency":"$0.00","price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"discounted_price":0,"discounted_price_with_currency":"$0.00","discounted_price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"variant_option_map":{"Model Code":"FP15\/DPSS2\/04\/32\/S\/77A-24D\/30"}},{"id":24459,"product_id":616,"price":0,"visibility":true,"inventory_status":true,"inventory_amount":0,"is_taxable":1,"sku":"FP1-616-FP-003","weight":"","catid":74,"image":{"id":1150,"src":"\/images\/easystore\/product-616\/dpss1.png","name":"dpss1.png","type":"image","is_featured":1,"alt_text":"dpss1.png"},"combination":"FP15\/DPSS3\/04\/32\/S\/78A-155","is_tracking_inventory":0,"tax_rate":0,"price_with_currency":"$0.00","price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"discounted_price":0,"discounted_price_with_currency":"$0.00","discounted_price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"variant_option_map":{"Model Code":"FP15\/DPSS3\/04\/32\/S\/78A-155"}},{"id":24460,"product_id":616,"price":0,"visibility":true,"inventory_status":true,"inventory_amount":0,"is_taxable":1,"sku":"FP1-616-FP-004","weight":"","catid":74,"image":null,"combination":"FP15\/DPSS1\/04\/32\/S\/74AT4-24D\/M\/36","is_tracking_inventory":0,"tax_rate":0,"price_with_currency":"$0.00","price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"discounted_price":0,"discounted_price_with_currency":"$0.00","discounted_price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"variant_option_map":{"Model Code":"FP15\/DPSS1\/04\/32\/S\/74AT4-24D\/M\/36"}},{"id":24461,"product_id":616,"price":0,"visibility":true,"inventory_status":true,"inventory_amount":0,"is_taxable":1,"sku":"FP1-616-FP-005","weight":"","catid":74,"image":null,"combination":"FP15\/DPSS2\/04\/32\/S\/77A-24D\/M\/30","is_tracking_inventory":0,"tax_rate":0,"price_with_currency":"$0.00","price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"discounted_price":0,"discounted_price_with_currency":"$0.00","discounted_price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"variant_option_map":{"Model Code":"FP15\/DPSS2\/04\/32\/S\/77A-24D\/M\/30"}},{"id":24462,"product_id":616,"price":0,"visibility":true,"inventory_status":true,"inventory_amount":0,"is_taxable":1,"sku":"FP1-616-FP-006","weight":"","catid":74,"image":null,"combination":"FP15\/DPSS3\/04\/32\/S\/78A-155\/M","is_tracking_inventory":0,"tax_rate":0,"price_with_currency":"$0.00","price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"discounted_price":0,"discounted_price_with_currency":"$0.00","discounted_price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"variant_option_map":{"Model Code":"FP15\/DPSS3\/04\/32\/S\/78A-155\/M"}}]

Quantity

Social share:

Social share:

You have 30 days to ask for a refund. All things on sale are final sale.

About This Item
Reviews

Order Details

¼" NPT Ports, 3 way 2 position, Indirect Acting, Normally Closed, 24Vdc, Auto Reset.
¼" NPT Ports, 3 way 2 position, Indirect Acting, Normally Closed, 24Vdc. *Manual override.

Model Code: FP15 - DPSSI,SS2,SS3 Dual Redundant (indirect acting)
Selection Chart	Code	Feature
Maximum Valve Pressure	High Pressure, Pilot Stage, Dual Redundant Solenoid Valves
	DPSSI	345 bar
	DPSS2	517 bar
	DPSS3	690 bar

Connections	M	Sub-base Mounting
	04	¼" NPT Body Ported
	06	3⁄8" NPT Body Ported
	38MP	3⁄8" MP Body Ported (Non Standard)

Valve configuration	22	2 way, 2 - position
Valve configuration	32	3-way, 2-position

O-ring Material	S	Nitrile (standard) (-30ºC to +130ºC)
	V	Viton (-20ºC to +180ºC)
	SA	Nitrile (Low Temperature) (-36ºC to +180ºC)

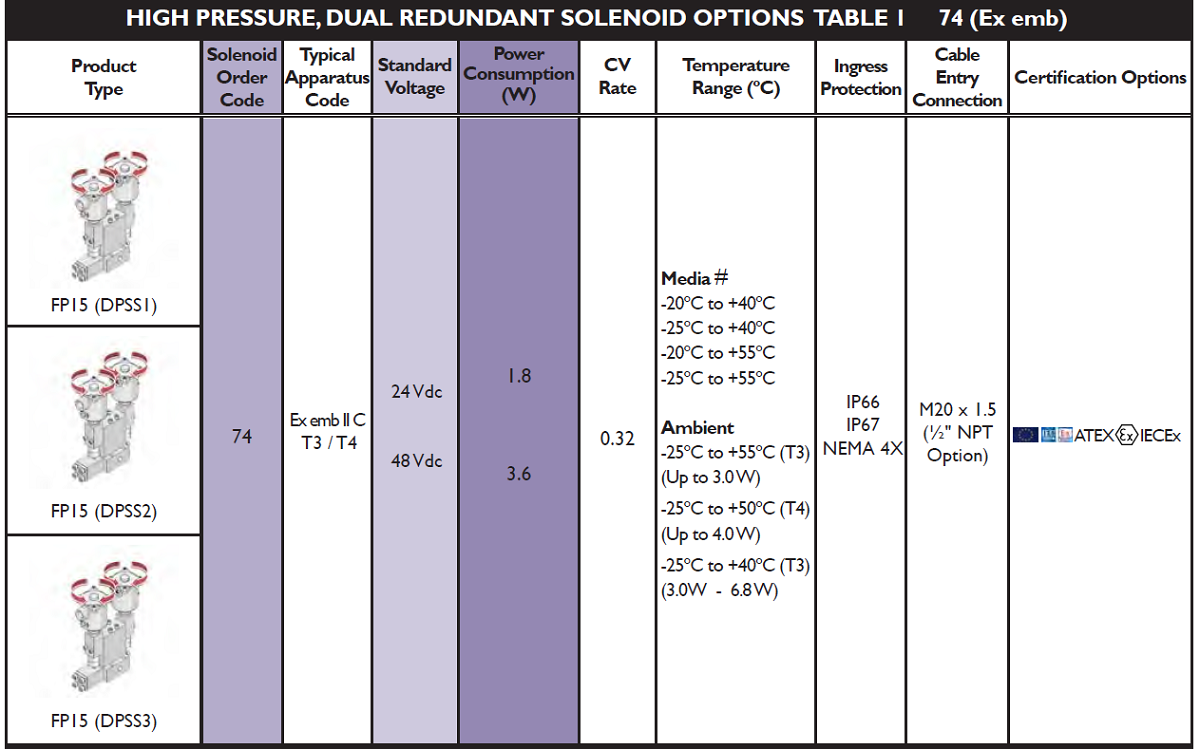

Solenoid **	74	see Figure here
	77	see Figure here

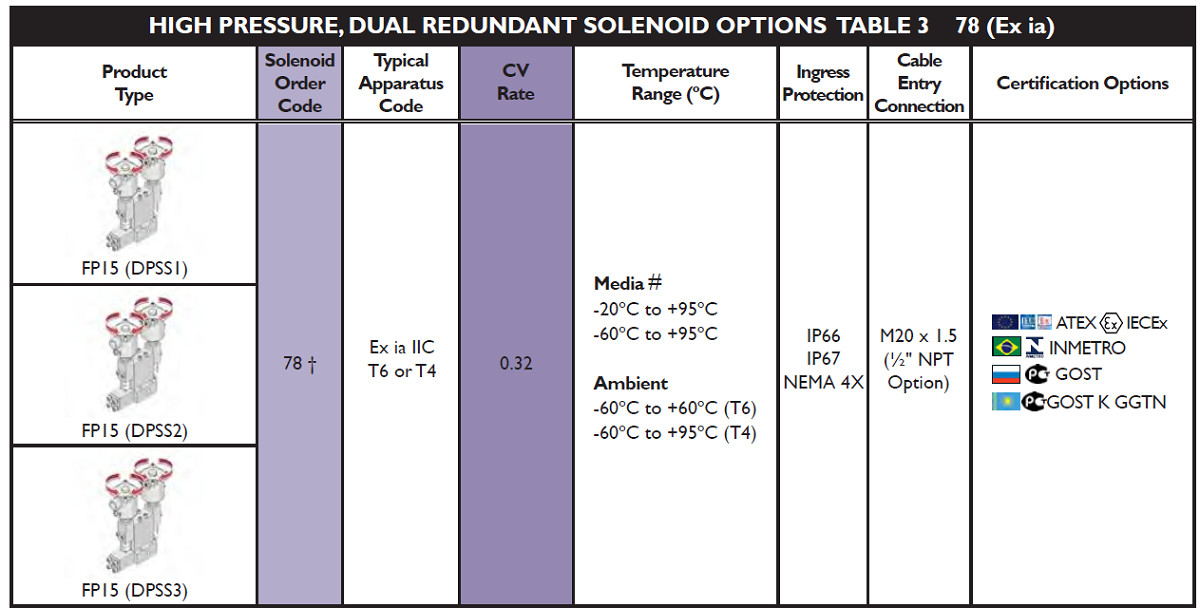

	78	see Figure here

Solenoid Approval	A	ATEX/IECEx Dual Certified/Labelled
	G	GOST
	I	INMETRO
	U	CSA (US) ATEX Dual Certified/Labelled

Ex emb 'T' Option	T4	Class ≤ 4.0 W (50ºC maximum ambient temperature)

Voltage	12D	see Figures 74 77
	24D
	48D
	110D
	110A
	240A
Resistance	XX	Ω 155 Ohms see figure 78

Options	M	Electrical to switch or temporary manual override
	ML	Electrical and manual required
	MOR	Electrical to switch or stayput manual override

Power	18	see Figure 74
	36	see Figure 74
	15	see Figure 77
	30	see Figure 77

Option	K85	½" NPT cable entry

Option1	H2S	NACE MR-01-75 compliant internal wetted and body materials

Option2	k6	BSPP Ports

Option3	EP	External Pilot Supply
Option3	EPT	External Pilot Supply & Vent

Sub-Base Options	M306	¼" NPT
	M229	½" NPT
	M1236	¼" BSP
	M1211	½" BSP

** Solenoid must be used in conjunction with a correctly matched Intrinsically Safe (IS) solenoid driver. The valve installer is responsible for a correct and safe IS system. The solenoid valve installation operating and maintenance instruction references are OP0001 & OP0165.

For further information read the datasheet here

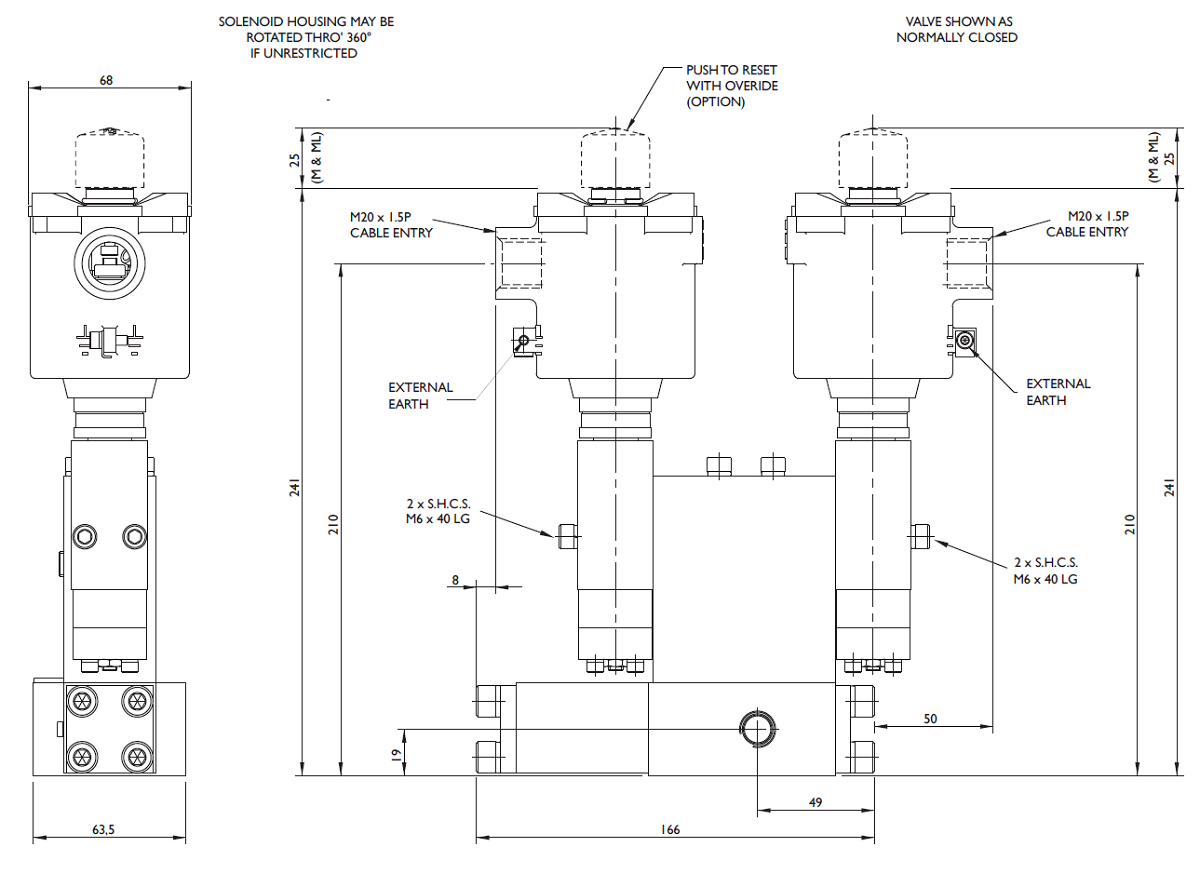

For dimension Click here

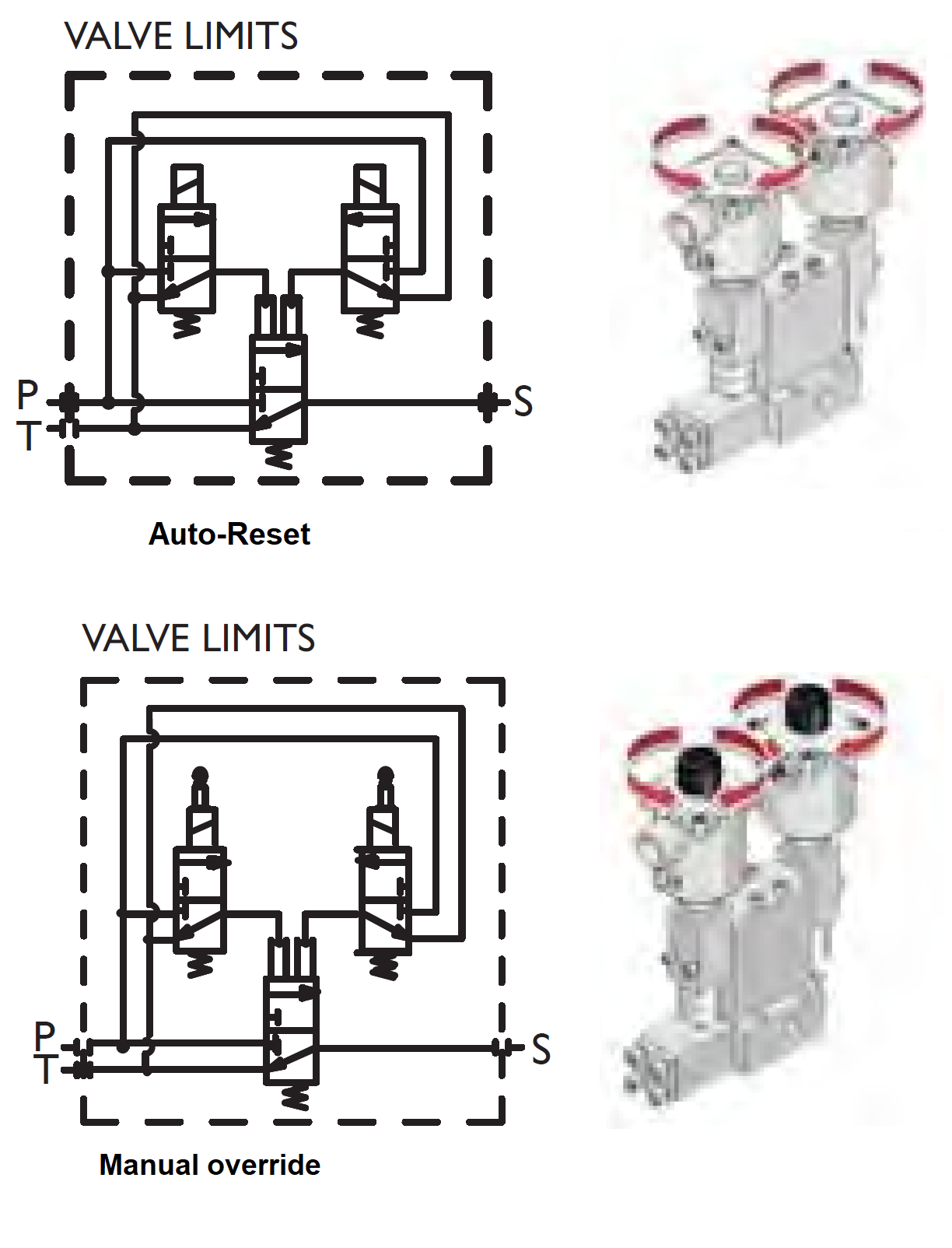

For diagram click here

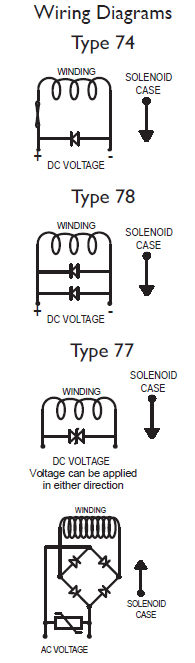

Internal Diode schematic here
Solenoid Valves - SIL Certificate here
