HRB8825 Stepper Motor HAT For Raspberry Pi, Drives Two HRB8825 Stepper Motor
This product ships globally
SKU : HRB-663-HR-001
In Stock
(0 Reviews)
HRB8825 Stepper Motor HAT For Raspberry Pi, Drives Two
$18.00
Model : HRB8825 Stepper Motor
Quantity
Social share:

Social share:

You have 30 days to ask for a refund. All things on sale are final sale.

HRB8825 Stepper Motor HAT For Raspberry Pi, Drives Two Stepper Motors



Technical Specifications

Brand:
Waveshare


Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.



Description

The Stepper Motor HAT (B) is an alternative solution to the stepper motor HAT. It is capable of driving two stepper motors with up to 1/32 microstepping. This HAT is specifically designed for applications such as 3D printers, sculpturing machines, mechanical arms, and more.

Features
  • Raspberry Pi connectivity, compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+
  • Onboard dual DRV8825 motor controller IC with built-in microstepping indexer,easy to drive two stepper motors
  • 6 available microstepping modes, configured with the DIP switches: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step
  • Adjustable motor drive current via potentiometer, maximum 2.5A current output
  • Integrates 5V regulator, allows providing power to Raspberry Pi
  • Onboard multi connector options for stepper motors in different specifications
Resources

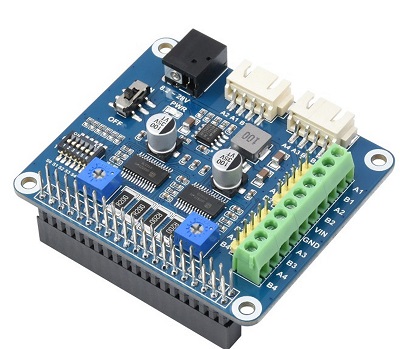

Stepper Motor HAT (B)

Alternative Solution Of Stepper Motor HAT,
Drives Two Stepper Motors, Up To 1/32 Microstepping

For 3D Printer, Sculpturing machine, Mechanical arm...

Stepper Motora

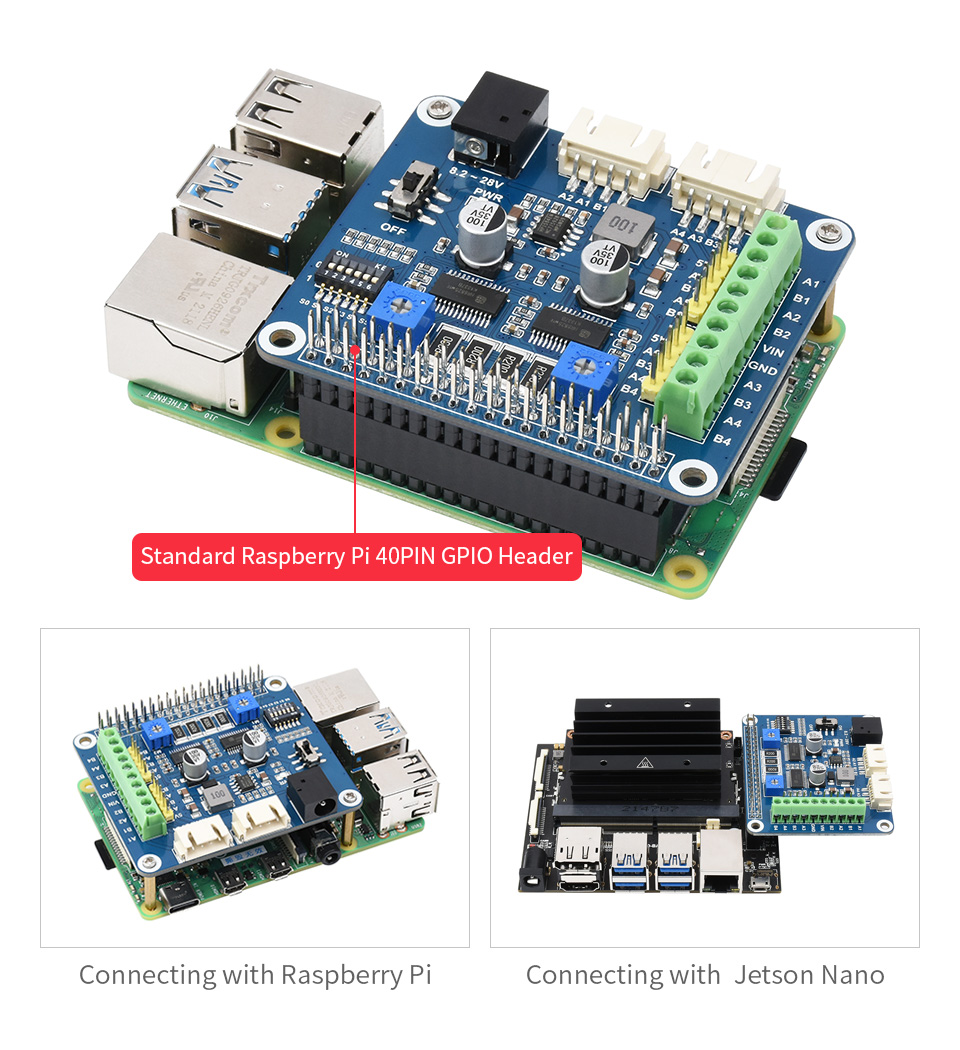

Raspberry Pi 40PIN GPIO Compatibility

Designed For Raspberry Pi Boards / Jetson Nano

Stepper Motor2a

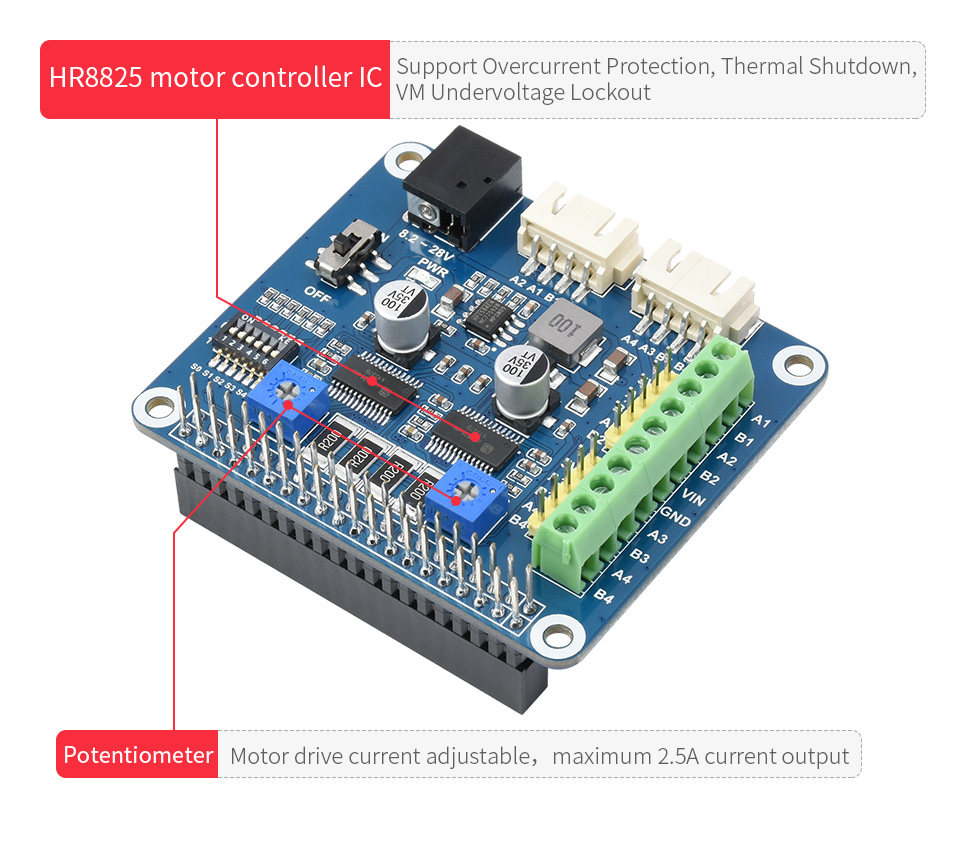

Onboard 2-Ch HR8825 Motor Driver Chip

Built-In Converter For Easy Control, Can Drive Two Stepper Motors

Stepper Motor2a

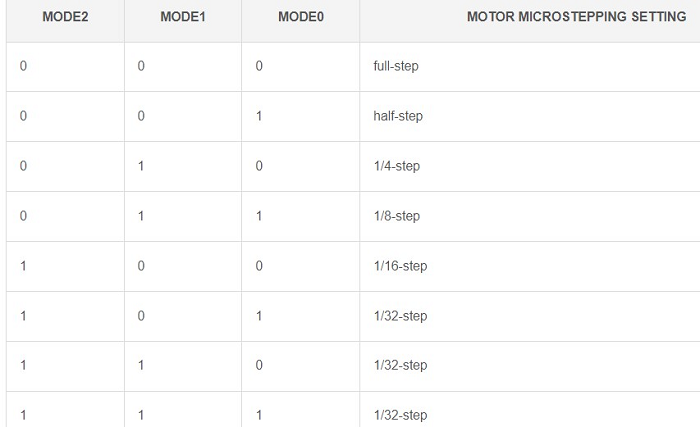

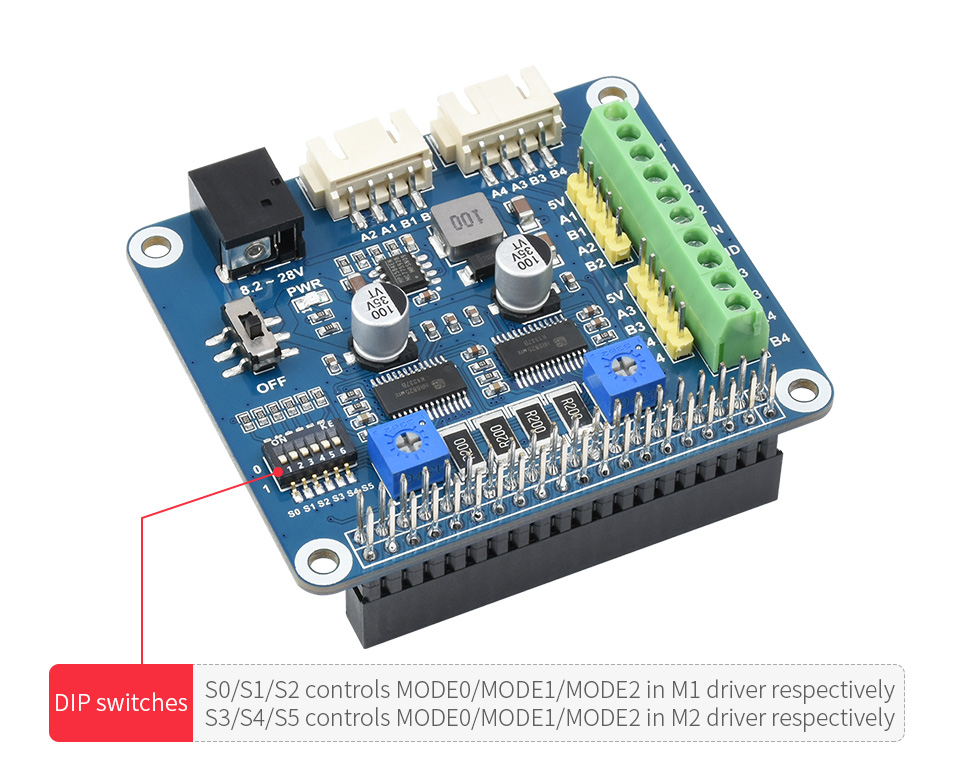

6 Available Microstepping Modes

Configured Via The DIP Switches:
Full-Step, Half-Step, 1/4-Step, 1/8-Step, 1/16-Step, And 1/32-Step

Stepper Motor3a

dip switch





Onboard Different Stepper Motor Interfaces

Easy Access To Stepper Motors In Different Specifications

Stepper Motor4a

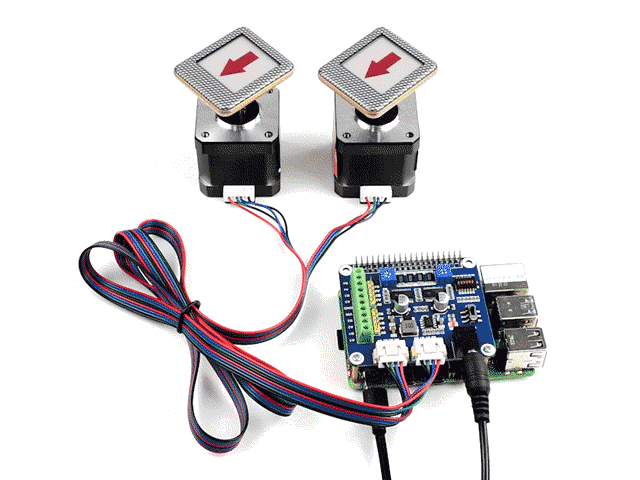

Application Examples

Easy Access To Stepper Motors In Different Specifications

Stepper Motor5

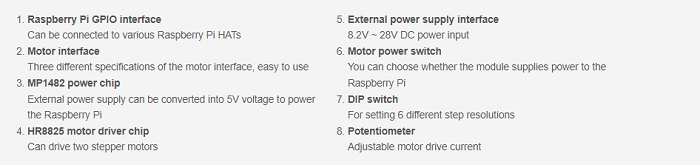

What's On Board

Stepper Motor6a

list

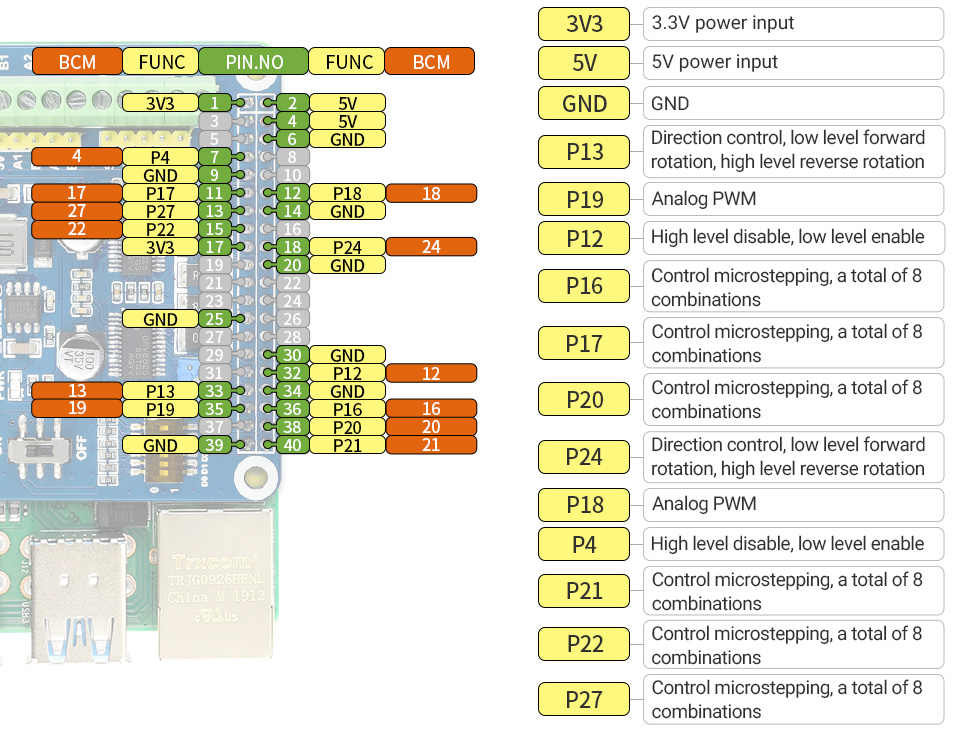

Pin Definition

Stepper Motor7a

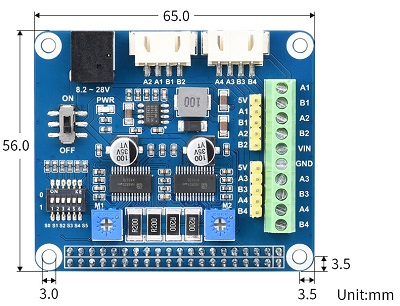

Outline Dimensions

Stepper Motor8a















No reviews yet. Be the first to review this product.
