Maker Drive: H-Bridge Motor Driver for Beginner

MAKER-DRIVE Dual-channel motor driver (2.5-9.5VDC),1.0A & 1.5A peak current. Built-in 5V output, compatibility with 1.8V, 3.3V, & 5V logic, regenerative braking, and precise PWM speed control (up to 20KHz). Compact at 43x35x14mm.

Technical Specifications

Brand:	Cytron
Current Capacity:	1A
Operating Voltage:	2.5 to 9.5V
PWM:	Yes
UART:	no
Analog:	no
RC Servo Signal:	no
Dimension:	43mm(W) x 35mm (L) x 14mm (H)

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

This MAKER-DRIVE dual-channel motor driver is a versatile solution for controlling motors. It supports a wide motor voltage range from 2.5V to 9.5VDC. It can handle a maximum current of up to 1.0A continuously and 1.5A in peak (for less than 5 seconds).

One of its standout features is the built-in 5V output with a capacity of 200mA, which can power your motor controller or other peripherals.

The inputs are compatible with 1.8V, 3.3V, and 5V logic, making it compatible with popular development boards like Arduino and Raspberry Pi.

Solid-state components are employed in its design, offering faster response times and eliminating the wear and tear associated with mechanical relays.

It also features regenerative braking, enhancing control options.

You can control the motor speed with a PWM frequency of up to 20KHz, and the actual output frequency matches the input frequency.

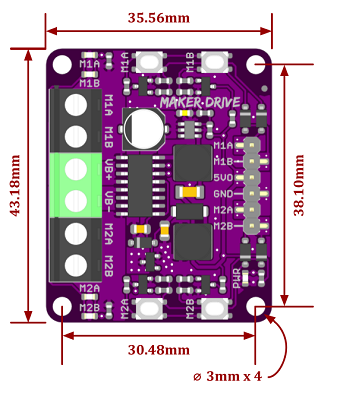

In terms of dimensions, it measures 43mm in width, 35mm in length, and 14mm in height.

Features

Dual-channel, Bi-directional control motor driver
Support motor voltage from 2.5V to 9.5VDC
Maximum current up to 1.0A continuous and 1.5A peak (less than 5 seconds)
5V Output (200mA) to power the controller.
Inputs compatible with 1.8V, 3.3V and 5V logic (Arduino, Raspberry Pi, etc).
Solid-state components provide faster response time and eliminate the wear and tear of mechanical relay
Regenerative Braking
Speed control PWM frequency up to 20KHz (Actual output frequency is the same as input frequency)
Dimension: 43mm(W) x 35mm (L) x 14mm (H)
