MP Male to NPT Female Adapters1/4 - SF250CX 1/8 15K
This product ships globally
Unavailable
(0 Reviews)
MP Male to NPT Female Adapters
$0.00
Working Pressure Up (psi) : 15K
OD of Male Adapter MP including Connection type : 1/4 - SF250CX
Female NPT Adapter : 1/8
Quantity
Social share:

Social share:

You have 30 days to ask for a refund. All things on sale are final sale.

  Find your Fitting and check the Dimensions



Male End Fits this Connection

Female End

Catalog Number

Dimension inches (mm)

A Hex

B

SF250CX

1/8 NPT

15MX42K8

0.63 (15.9)

1.47(37.3)

SF250CX

1/4 NPT

15MX44K8

0.75 (19.1)

1.59 (40.5)

SF250CX

3/8 NPT

15MX46K8

1.00 (25.4)

1.66 (42.2)

SF250CX

1/2 NPT

15MX48K8

1.18 (30.1)

1.97 (50.0)

SF250CX

3/4 NPT

10MX412K8

1.38 (35.1)

2.09 (53.2)

SF375CX

1/8 NPT

15MX62K8

0.63 (15.9)

1.75 (44.5)

SF375CX

1/4 NPT

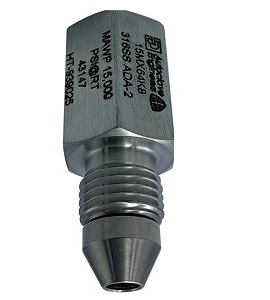

15MX64K8

0.75 (19.1)

1.81 (46.0)

SF375CX

3/8 NPT

15MX66K8

1.00 (25.4)

1.88 (47.6)

SF375CX

1/2 NPT

15MX68K8

1.18 (30.1)

2.12 (54.0)

SF375CX

3/4 NPT

10MX612K8

1.38 (35.1)

2.38 (60.3)

SF375CX

1 NPT

10MX616K8

1.75 (44.5)

2.63 (66.7)

SF562CX

1/8 NPT 15MX92K8 0.94 (23.8)

1.75 (44.5)

SF562CX

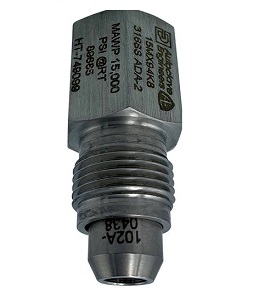

1/4 NPT 15MX94K8 0.94 (23.8)

2.18 (55.5)

SF562CX

3/8 NPT 15MX96K8 0.94 (23.8)

2.18 (55.5)

SF562CX

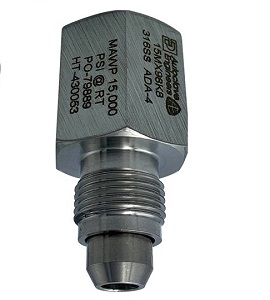

1/2 NPT 15MX98K8 1.18 (30.1)

2.44 (61.9)

SF562CX

3/4 NPT 10MX912K8 1.50 (38.1)

2.50 (63.5)

SF562CX

1 NPT 10MX916K8 1.75 (44.5)

3.00 (76.2)

SF750CX

1/4 NPT 15MX124K8 1.18 (30.1)

2.50 (63.5)

SF750CX

3/8 NPT 15MX126K8 1.18 (30.1)

2.88 (73.0)

SF750CX

1/2 NPT 15MX128K8 1.18 (30.1)

2.88 (73.0)

SF750CX

3/4 NPT 10MX1212K8 1.38 (35.1)

3.12 (79.3)

SF750CX

1 NPT 10MX1216K8 1.75 (44.5)

3.50 (88.9)

SF1000CX

1/4 NPT

15MX164K8

1.50 (38.1)

3.18 (81.0)

SF1000CX

3/8 NPT

15MX166K8

1.75 (44.5)

3.18 (81.0)

SF1000CX

1/2 NPT

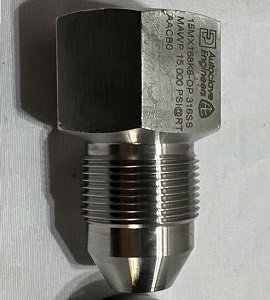

15MX168K8

1.75 (44.5)

3.18 (81.0)

SF1000CX

3/4 NPT

10MX1612K8

1.75 (44.5)

3.18 (81.0)

SF1000CX

1 NPT

10MX1616K8

1.75 (44.5)

3.18 (81.0)

SF1500CX

1/4 NPT

15M244K8

1.75 (44.5)

3.56 (90.43)

SF1500CX

1/2 NPT

15M248K8

1.75 (44.5)

3.56 (90.43)

Note: Maximum pressure rating is based on the lowest rating of any component. Actual working pressure may be determined by tubing pressure rating, if lower. If on a hydraulic line (or whatever), it will install a fitting with a lower pressure rating, all the lines will be declassed at that fitting.

The figure below shows the Fittings Dimension

dimension

Recommendation

Do not modify any fittings without the manufacturer's approval, and do not manipulate or mix fittings with other manufacturers.
