SPR-08 3/2 Direct Acting (Auto & Manual-Reset)SPR-08-08-E1-32-NC-00-V-74AT4-24D-36

This product ships globally

SKU : SPR-599-SP-001

In Stock

(0 Reviews)

SPR-08 3/2 Direct Acting (Auto & Manual-Reset)

Model Code : SPR-08-08-E1-32-NC-00-V-74AT4-24D-36

SPR-08-08-E1-32-NC-00-V-74AT4-24D-36 SPR-08-08-E1-32-NC-00-V-77A-24D-30 SPR-08-08-E1-32-NC-00-V-78A-260 SPR-08-08-E5-32-NC-00-V-74AT4-24D-36 SPR-08-08-E5-32-NC-00-V-77A-24D-30 SPR-08-08-E5-32-NC-00-V-78A-260

[{"id":24340,"product_id":599,"price":0,"visibility":true,"inventory_status":true,"inventory_amount":0,"is_taxable":1,"sku":"SPR-599-SP-001","weight":"","catid":71,"image":{"id":1132,"src":"\/images\/easystore\/product-599\/spr.png","name":"spr.png","type":"image","is_featured":1,"alt_text":"SPR-08 3\/2 Direct Acting (Auto & Manual-Reset)SPR-08-08-E1-32-NC-00-V-74AT4-24D-36"},"combination":"SPR-08-08-E1-32-NC-00-V-74AT4-24D-36","is_tracking_inventory":0,"tax_rate":0,"price_with_currency":"$0.00","price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"discounted_price":0,"discounted_price_with_currency":"$0.00","discounted_price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"variant_option_map":{"Model Code":"SPR-08-08-E1-32-NC-00-V-74AT4-24D-36"}},{"id":24341,"product_id":599,"price":0,"visibility":true,"inventory_status":true,"inventory_amount":0,"is_taxable":1,"sku":"SPR-599-SP-002","weight":"","catid":71,"image":{"id":1132,"src":"\/images\/easystore\/product-599\/spr.png","name":"spr.png","type":"image","is_featured":1,"alt_text":"spr.png"},"combination":"SPR-08-08-E1-32-NC-00-V-77A-24D-30","is_tracking_inventory":0,"tax_rate":0,"price_with_currency":"$0.00","price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"discounted_price":0,"discounted_price_with_currency":"$0.00","discounted_price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"variant_option_map":{"Model Code":"SPR-08-08-E1-32-NC-00-V-77A-24D-30"}},{"id":24342,"product_id":599,"price":0,"visibility":true,"inventory_status":true,"inventory_amount":0,"is_taxable":1,"sku":"SPR-599-SP-003","weight":"","catid":71,"image":{"id":1132,"src":"\/images\/easystore\/product-599\/spr.png","name":"spr.png","type":"image","is_featured":1,"alt_text":"spr.png"},"combination":"SPR-08-08-E1-32-NC-00-V-78A-260","is_tracking_inventory":0,"tax_rate":0,"price_with_currency":"$0.00","price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"discounted_price":0,"discounted_price_with_currency":"$0.00","discounted_price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"variant_option_map":{"Model Code":"SPR-08-08-E1-32-NC-00-V-78A-260"}},{"id":24343,"product_id":599,"price":0,"visibility":true,"inventory_status":true,"inventory_amount":0,"is_taxable":1,"sku":"SPR-599-SP-004","weight":"","catid":71,"image":{"id":1179,"src":"\/images\/easystore\/product-599\/manual_reset.png","name":"manual_reset.png","type":"image","is_featured":0,"alt_text":"manual_reset.png"},"combination":"SPR-08-08-E5-32-NC-00-V-74AT4-24D-36","is_tracking_inventory":0,"tax_rate":0,"price_with_currency":"$0.00","price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"discounted_price":0,"discounted_price_with_currency":"$0.00","discounted_price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"variant_option_map":{"Model Code":"SPR-08-08-E5-32-NC-00-V-74AT4-24D-36"}},{"id":24344,"product_id":599,"price":0,"visibility":true,"inventory_status":true,"inventory_amount":0,"is_taxable":1,"sku":"SPR-599-SP-005","weight":"","catid":71,"image":{"id":1179,"src":"\/images\/easystore\/product-599\/manual_reset.png","name":"manual_reset.png","type":"image","is_featured":0,"alt_text":"manual_reset.png"},"combination":"SPR-08-08-E5-32-NC-00-V-77A-24D-30","is_tracking_inventory":0,"tax_rate":0,"price_with_currency":"$0.00","price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"discounted_price":0,"discounted_price_with_currency":"$0.00","discounted_price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"variant_option_map":{"Model Code":"SPR-08-08-E5-32-NC-00-V-77A-24D-30"}},{"id":24345,"product_id":599,"price":0,"visibility":true,"inventory_status":true,"inventory_amount":0,"is_taxable":1,"sku":"SPR-599-SP-006","weight":"","catid":71,"image":{"id":1179,"src":"\/images\/easystore\/product-599\/manual_reset.png","name":"manual_reset.png","type":"image","is_featured":0,"alt_text":"manual_reset.png"},"combination":"SPR-08-08-E5-32-NC-00-V-78A-260","is_tracking_inventory":0,"tax_rate":0,"price_with_currency":"$0.00","price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"discounted_price":0,"discounted_price_with_currency":"$0.00","discounted_price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"variant_option_map":{"Model Code":"SPR-08-08-E5-32-NC-00-V-78A-260"}}]

Quantity

Social share:

Social share:

You have 30 days to ask for a refund. All things on sale are final sale.

About This Item
Reviews

Order Details

½" NPT Ports, 3 Way 2 Position, Pilot Operated, Direct Acting, Normally Closed, Spring Return, 24Vdc, Auto Reset Internal Pilot.
½" NPT Ports, 3 Way 2 Position, Pilot Operated, Direct Acting, Normally Closed, Spring Return, 24Vdc, Manual Reset Internal Pilot.

Model Code: SPR-08 3/2 Direct Acting (Auto & Manual-Reset)
Selection Chart	Code	Feature
Operator:

Connections	04	¼" Body Ported (Stainless Steel)
	06	3⁄8" Body Ported (Stainless Steel)
	08	½" Body Ported (Stainless Steel)

Primary Operator	E1	Auto Reset Internal Pilot
	E3	Manual Override Internal Pilot (M)
	E5	Manual Reset Internal Pilot (ML)
	E13	Manual Reset Tamperproof Internal Pilot (MLT)
	E15	Manual Override Rotary Internal Pilot (MOR)

Valve Configuration	32	3 Way 2 Position

Valve Configuration1	NC	Normally Closed
Valve Configuration1	NO	Normally Open

Secondary Operator	00	Spring Return
	02	Spring Return + Plunger
	E1	Auto Reset Internal Pilot
	E3	Manual Override Internal Pilot (M)
	E5	Manual Reset Internal Pilot (ML)
	E13	Manual Reset Tamperproof Internal Pilot (MLT)
	E15	Manual Override Rotary Internal Pilot (MOR)

O-ring Material	SA	Nitrile (Low Temperature) (-25ºC to +130ºC)
	V	Viton (Standard) (-20ºC to +100ºC)
	AL	Fluorosilicone (-60ºC to +100ºC)

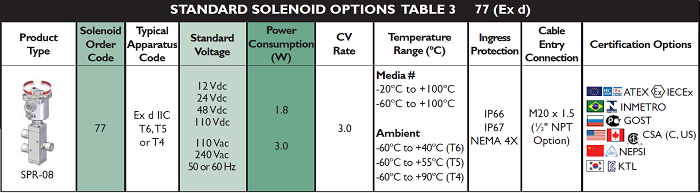

Solenoid **	77	see Figure here

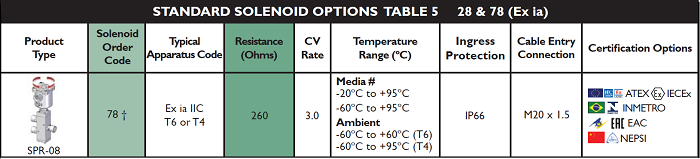

	78	see Figure here

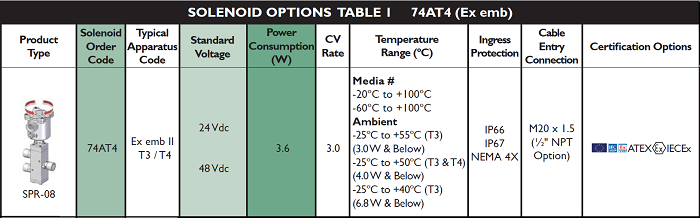

	74AT4	see Figure here

Solenoid Approval	A	ATEX/IECEx Dual Certified/Labelled
	G	GOST
	I	INMETRO
	N	NEPSI*
	U	CSA (US) ATEX Dual Certified/Labelled
	K	KTL/IECEx Dual Certified/Labelled

Voltage	12D	see Figures 77 74AT4
	24D
	48D
	110D
	110A
	240A
Resistance		Resistance ( ) 78 (Ex ia) - 260 Ohms

Power	18	see Figure 77
	30	see Figure 77
	36	see Figure 74AT4

Cable Entry		NO LETTER will be M20 x 1.5 Cable Entry
	K85	½" NPT Cable Entry

Option1		NO LETTER will be NPT Ports - Block Before Bleed (BBB)
Option1	K6	BSPP Ports

** Special conditions for safe use Type 74AT4 - The supply circuit shall be fi tted with a fuse capable of meeting a 1500 Amp short circuit current. Must be compliant with special conditions for safe use as defi ned in EC Type Examination Certifi cate Sira01ATEX3248U

For further information read the datasheet here

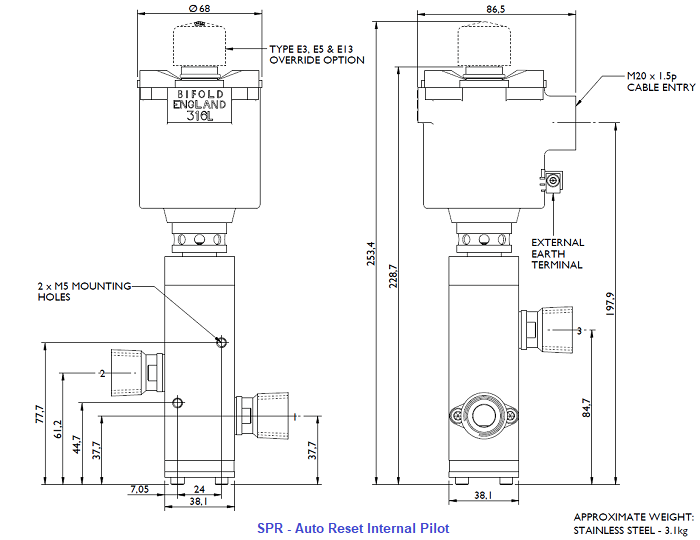

For dimension Click here

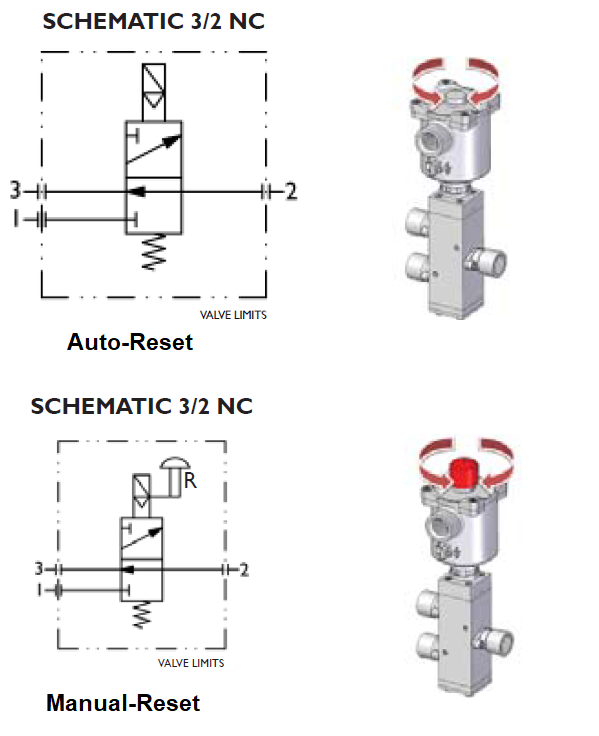

For diagram click here
Solenoid Valves - SIL Certificate here
