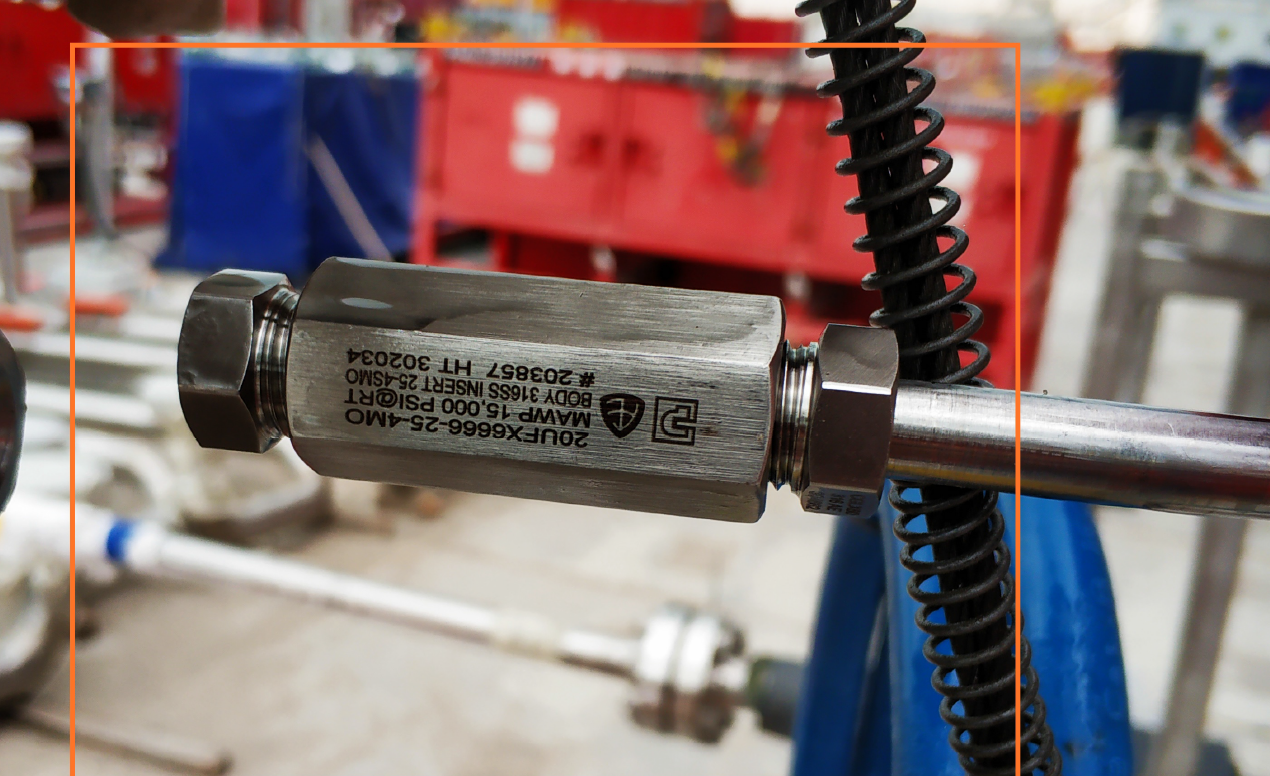

Fittings and Tubing medium pressure Cone & Thread Pressures to 20,000 psi (1379 bar). Includes Check Valves, Filters & Couplings Principle of Operation: Parker Autoclave Engineers medium pressure Cone and Thread connections were created for those applications that require higher flow rate capability. Designed for a maximum of 20,000 psi MAWP using high tensile strength cold worked 316/316L Stainless Steel material as standard. In addition, we offer even larger ID Tubing de-rated to 15,000 psi for maximum flow rate capability. This medium-pressure series has all the benefits of the High- pressure version with all metal sealing, temperature ranges from -423 to 1200 F (-252 to 650 C) and includes many different material options like 2507 Super Duplex, Hastelloy C276, 6Mo (25-4 SMO), and Inconel 625 to mention just a few. Fittings and Tubing found in this section are designed using ASME Chapter IX standards to be compatible with our 15SM & 20SM, 20 DBNV, and 20DV Needle Valves and all of our various ball valve configurations, including Subsea.

Recommendations

1. Never install some parts of fittings with each other. Even if they look the same, the tolerances change from fitting to fitting. A fitting assembled by two or more companies could be fatal under pressure for those who work close to it or can break in critical systems such as a plane or helicopter. For more details, follow the assembly instructions here

Parker Autoclave Engineers manufacture a full line of industrial couplings and adapters for low, medium, and high-pressure applications. Male-to-male, female-to-female, female-to-male, and male-to-female connections are available in a variety of sizes and designs to suit any need. Each product is precision engineered from Type 316 stainless steel to withstand even the most demanding process conditions.

Note: Maximum pressure rating is based on the lowest rating of any component. Actual working pressure may be determined by tubing pressure rating, if lower (Fittings included).

Adapters/Couplings: Adapters/Couplings Parker Autoclave Engineers offers a complete line of standard adapters and couplings as well as special designs and materials.

Male/Female Adapters: Male/female adapters are designed to join a female connection directly to another size and/or type of connection without the need for an additional coupling.

Couplings: Couplings and reducer/adapter couplings accommodate female-to-female joining of any combination of standard-size tubing listed.

Features

• One piece adapters machined from type 316 cold worked stainless steel
• Available in Low, Medium, and High Pressure configurations, as well as NPT and Reverse High Pressure configurations

Technical Data

• Operating pressure: up to 40,000 PSIG @ RT
• Connection 9/16″ up to 1" Reverse High (Reverse High Pressure)

1. Parker Autoclave Engineers also offers a line of components that assist in adapting into and out of specialized connections with Parker Autoclave Engineers products. Along with the adapters shown, Parker Autoclave Engineers can provide other special adapters to fill your requirements. Contact us for additional information. This type of fitting is often used on high pressure hydraulic circuits.

2. Parker Autoclave Engineer’s male-to-male JIC one-piece adapters are available in low, medium, and high pressure configurations. JIC adapters are machined from cold worked stainless steel. Other materials are available upon request. Contact us for additional information. The following tables list our standard adapters with dimensions.

1. Parker Autoclave Engineers offers a line of gauge connectors used to connect pressure lines to pressure gauges. Gauge connectors can be connected to gauges with tapered and straight pipe threads, or high-pressure connections.
2. Parker Autoclave Engineers offers an EZ-Union adapter providing a fast and simple way to install or remove components from a pressure system. The face seal o-ring design provides a positive seal with easy and reliable operation. EZ-Union adapters can be provided with any standard or special connection combination. Optional materials available upon request. Contact us for additional information. The following tables show the standard adapters with dimensions.

EZ-Union Adapters: O-ring face seal adapter. Flat face style o-ring seal permits easy installation or removal of components.

Parker Autoclave Engineers Butt-Weld adapters are available in several configurations. Regarding Material or other information, Contact us here on the website.

Butt-Weld/Header Coupling Adapters: Female to male adapters have one end machined for butt-welding to pipe, tubes, and headers.

The boned seal is a rubber ring and a metal ring integrally bonded and vulcanized, and is a sealing ring used to seal the thread and flange connection. The ring includes a metal ring and a rubber gasket. Anti-rust treatment of metal rings, rubber rings generally use oil resistant nitrile rubber or fluorine rubber. The combination pads are available in metric and inch sizes. There are standard JB982-77 regulations for the combination of metal pads and rubber in combination pads. Combination gaskets are used for threaded pipe joints and screw plugs. It is generally used with ferrule pipe joints to block oil ports. It is mainly used for static sealing of end faces of threaded joints of hydraulic valve pipe joints.

Autoclave engineering is one of the most versatile companies in the Oil & Gas industry; they offer manual Coning and Threading tools that are designed to prepare accurate tubing ends to accept medium, high and ultra-high pressure connections.

Tools & Installation feature:

1. Manual Coning and Threading Coning tools are designed to thread up to 9/16” OD tubing.
2. One size Coning and Threading tool with interchangeable bushings and thread die eliminates multiple tool inventories.
3. Internal needle bearings and high-strength materials offers ease of operation and extended tool life.
4. Coning blades are designed to cut both the angle and straight areas to insure good concentricity between the sealing surfaces.
5. Precision Reseating Tools to repair damaged female high-pressure connections without full disassembly of components.

Only a competent person familiar with these operating procedures should operate this machine.

Benefits

1. Coning and Threading Machine tools are designed to thread up to 1” OD tubing.
2. Coning and Threading of AE Medium and High-Pressure Tubing.
3. Separate heads for coning and threading are powered by a single motor and drive system.
4. New design collet / support system allows for easier coning and threading of long tube lengths.
5. New design tube depth gauge eliminates movement of tubing during the threading operation.

Features

1. 1/2-HP TEFC motor, capacitor start
2. Pop-Open die prevents thread damage; no reversing necessary on threading.
3. Complete tooling available; order separately
4. Supplied with oil pump and reservoir
5. Available optional oil reservoir heater for operation below 65° F (18.3°C)
6. Available CE marked
7. Unit mounted on stand with locking casters for ease of mobility and stability

Models Available

1. AEGCTM-2: 115/230 VAC 60Hz
2. AEGCTM-2E: 220 VAC 50Hz
3. AEGCTM-2WOH: Standard unit with optional heater

• Approximate Dimensions: 56” h x 28”w x 20” d (142cm x 71 cm x 51 cm)
• Shipping Weight: 350 pounds (158.7 Kg)

Note: Optional “CE Marked” available on AEGCTM-2E only

The components shown above are those most exposed to wear or breakage. The rest of the components are all available in our store. For further clarifications and concerns, you may visit our FAQs page on our website.

We have the facility to produce in advance various industrial applications according to specially developed technology. We are also ready to develop and suggest according to the client's request thanks to our specializations over the years.
