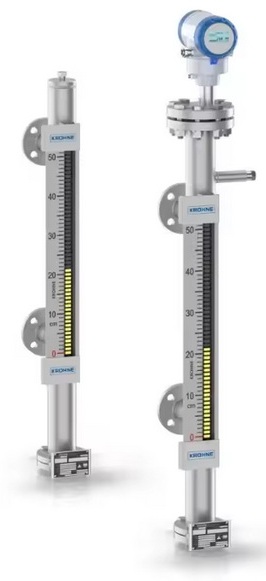

KROHNE BM 26 BASIC/ADVANCED

 VF4140101101FF11010000000032- (Stainless Steel Bypass Level Indicators for applications
up to 40 bar / 580 psi)

The KROHNE BM 26 BASIC works on the principle of communicating vessels, using a magnetically coupled float inside a bypass chamber to indicate the liquid level in an adjacent tank. As the liquid level in the tank changes, a float inside the chamber rises or falls with it, moving a magnetic follower or rotating magnetic flaps in a transparent glass tube outside the chamber to provide a visual, local level indication without requiring power.

How it Works

1. Bypass chamber: The BM 26 is installed next to a tank, connected via two nozzles to create a bypass chamber. The liquid level in this chamber is the same as in the main tank.
2. Magnetic float: A float with a permanent magnet is placed inside the bypass chamber. As the liquid level in the tank changes, the float rises or falls with it.
3. Indicator: Adjacent to the bypass chamber, a display tube contains a column of magnetic flaps or a magnetic follower (bar indicator).
4. Magnetic coupling: The magnet inside the float magnetically couples with the indicator, causing it to rotate or move in sync with the float.
5. Visual indication: The flaps inside the tube turn from one color to another (e.g., yellow to black) to show the level, or the follower moves up and down the scale, providing a highly visible and reliable local level reading.

Key features

• No power required for local display: The basic model provides a local, visual level indication that does not need a power supply.
• Optional electrical output: The device can be optionally equipped with electrical transmitters for remote monitoring or limit switches for high/low alarms.
• Rugged and safe design: It is suitable for harsh environments and can be used with aggressive, toxic, or flammable liquids, especially when options like a PTFE lining are used.
• Interface indication: The indicator can also be configured to show the interface level between two immiscible liquids.

 Full Datasheet

Transmitter & Antenna Feature

• Manufacturer :  Krohne - BM 26
• Product No. :   VF4140101101FF11010000000032
• VF41  - BM 26 Basic Magnetic bypass level indicator: -40...+150°C and -16 bar max. / -40...300°F and 232 psi max.
• Special Number: 4
• Material: 0 - 316
• Approval: 1  - ATEX
• Other approval: 0 - without
• Process temperature: 1 - -40...+150°C (-40...+300°F)
• Density [kg/l]/Float material: 1 - 0.8. 1.19 / 316L
• Orientation of process connections: 0 - Lateral / Lateral)
• Process connection type: 1 - Flange connection
• Process connection: F - ¾¨ 150LB
• Flange facing: F - Form RF (ASME B16.5)
• Vent: 1 - 3/8 NPT + plug
• Drain: 1 - 3/8 NPT + plug
• Sealing: 0   - Without
• Indicator / scale 1 - Flaps / without scale
• Transmitter/Converter position: 0 - without
• Transmitter approval: 0 - Without
• Number of limit switches: 0 - Without
• Limit switch approval: 0 - without
• Special Number: 00
• Certificate for calibration: 0 - without
• Tag number: 0 - without
• C-C length: 3 - 3m
• C-C length: 2 - 200 mm

There are several Model of visual level, for more details read the PDF below

Basic Ordering Information
