An ABB positioner works by comparing the control signal to the actual valve position, using a mechanical feedback mechanism like a cam and lever. Based on this comparison, it adjusts the pneumatic pressure to the actuator to move the valve to the commanded position. For digital positioners, internal controllers like PID loops are used to precisely calculate the required air pressure, which is then converted from an electrical signal (e.g., 4-20mA) into a pneumatic output.
Positioners available with or without HART protocol. In some cases where the positioner response needs to be almost instantaneous (without delays), the positioner without the HART protocol is much better. Unfortunately, the Hart protocol reduces the positioner's response by a few milliseconds. For some device like anti-surge valve is forbiden to use it.
ABB Positioners Transmitters - TZIDC, TZIDC-200, EDP300, AV1, AV2, TEIP11
TZIDC-200
For highly precise and
reliable valve
positioning
TZIDC
Low operating cost
Compact design
EDP300
High air capacity
Resistant to overpressure
TEIP11
Measurement made easy
Proven and reliable concept
AV1 and AV2
pneumatic and
electro-pneumatic positioners
22-06-65
I/P Converter
Intrinsically Safe
Categories
ABB TZIDC - for liquids at high temperature and pressure - TZIDC Series (186)
TZIDC - intelligent, configurable with indicator and operator panel - Part number V18345-2020120001 / - Air pipe: Thread 1/4-18 NPT / Comunication - FSK module for HART communication / Display - on board

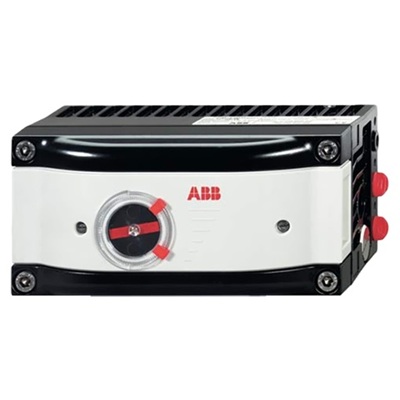

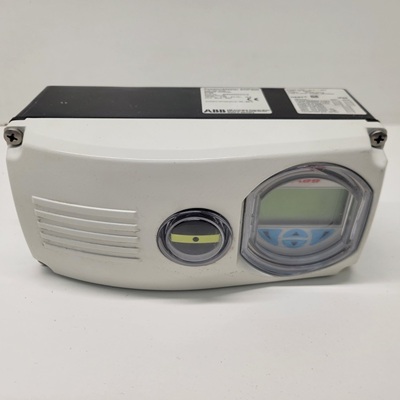

ABB TZIDC-200 - TZIDC-200 digital positioner, with flameproof enclosure, intelligent, TZIDC-200 Series (187)
TZIDC-200 digital positioner, with flameproof enclosure, intelligent, software configurable with Local Communication Interface (LCI) and HART communication - Part number V18348-20123310110 / - Air pipe: air pipe: Thread 1/4-18 NPT/ Comunication - analog or digital position feedback / display integrated in the enclosure cover
ABB TZIDC-200 - digital positioner, with flameproof enclosure, intelligent, TZIDC-200 Series (188)
TZIDC-200 digital positioner, with flameproof enclosure, intelligent, software configurable with Local Communication Interface (LCI) and HART communication - Part number V18348-10113310110 / - Air pipe: air pipe: Thread 1/4-18 NPT/ Comunication - analog or digital position feedback / display integrated in the enclosure cover/Double acting, fail safe
ABB TZIDC-200 - digital positioner, with flameproof enclosure, intelligent, TZIDC-200 Series (189)
TZIDC-200 digital positioner, with flameproof enclosure, intelligent, software configurable with Local Communication Interface (LCI) and HART communication - Part number V18348-20113200110 / - Air pipe: air pipe: Thread 1/4-18 NPT/ Comunication - analog or digital position feedback / display integrated in the enclosure cover/Double acting, fail safe
ABB TZIDC - intelligent, configurable with indicator and operator panel, TZIDC Series (190)
TZIDC Digital positioner, intelligent, configurable with indicator and operator panel - Part number V18345-2020120001 / - Air pipe: air pipe: Thread 1/4-18 NPT/ Comunication - FSK module for HART communication / Single acting, fail freeze

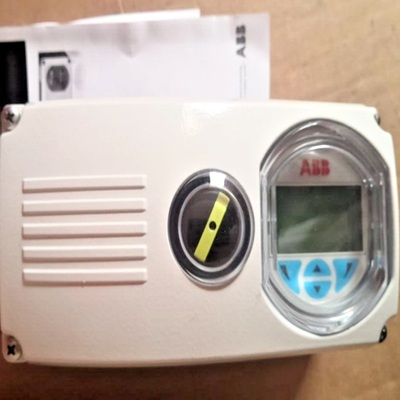

ABB EDP300 - Position Master EDP300 digital positioner EDP300 Series (191)
EDP300 Position Master EDP300 digital positioner - Part number EDP300-Y0H2F2D / - Air pipe: air pipe: Thread 1/4-18 NPT female Comunication - HART digital communication and 4 ... 20 mA / Double acting, fail freeze
ABB EDP300 - Position Master EDP300 digital positioner EDP300 Series (192)
EDP300 Position Master EDP300 digital positioner - Part number EDP300 Y0H1S2D / - Air pipe: air pipe: Thread 1/4-18 NPT female Comunication - HART digital communication and 4 ... 20 mA / Double acting, fail freeze

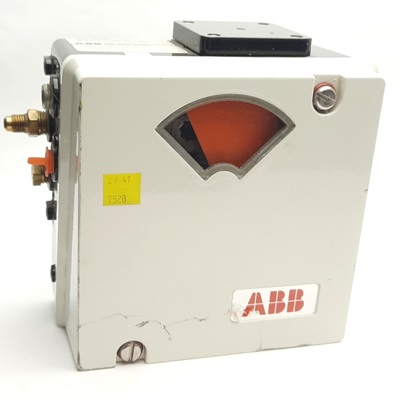

ABB AV1 - Pneumatic positioner EDP300 AV1 Series (193)
AV1 Pneumatic positioner - Part number AV1220000 / -0.2 to 1.86 bar (3 to 27 psi), standard temperature range –40 to 82 °C (–40 to 180 °F)
ABB AV1 - Pneumatic positioner AV1 Series (194)
AV1 Pneumatic positioner - Part number AV1120000 / 0.2 to 1 bar (3 to 15 psi), standard temperature range –40 to 82 °C (–40 to 180 °F)

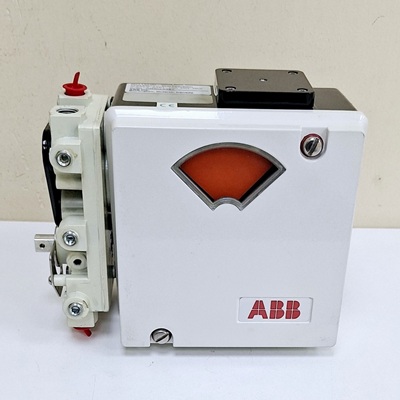

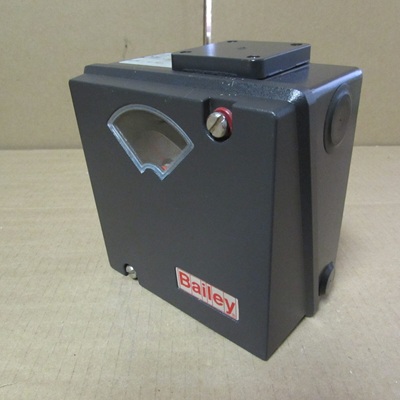

ABB AV2 - Electropneumatic positioner AV2 Series (195)
AV2 Electropneumatic positioner- Part number AV2320010 /4 to 20 mA input, 25.4 to 101.6 mm (1.0 to 4.0 in) or 90° rotation / Standard with drive arm
ABB TEIP11 I/P- I/P Converter, signal converter TEIP11Series (196)
TEIP11 I/P Converter, signal converter for standard signals, without power stage / Part number V18312H - 2222113 /4 to 20 mA 3 ... 15 psi / Direct action / Adjusted to 4 bar (60 PSI)

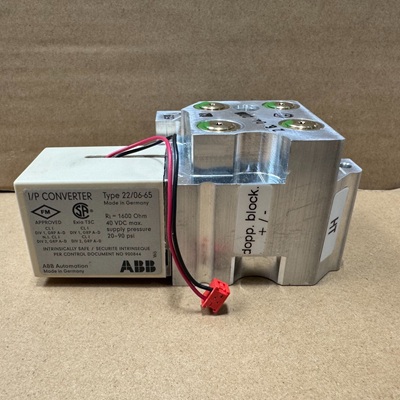

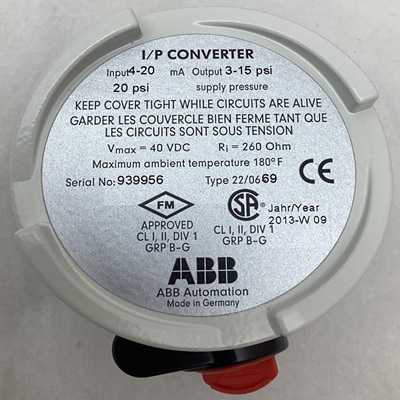

ABB I/P signal converter (197)
I/P signal converter/ Part number 22-06-65 /4 to 20 mA 3 ... 15 psi / Direct action
ABB TZID - intelligent, configurable with display and operating panel, TZID Series (198)
TZID intelligent, configurable with display and operating panel signal input 4 ... 20 mA, two-wire - Part number 18341-A1212202/001 / - Air pipe: air pipe: Thread 1/4-18 NPT/ Comunication - analog or digital position feedback / display integrated in the enclosure cover
Technical Feature ABB Positioner Transmitters
| Advantages | Disadvantages | |
|
|
